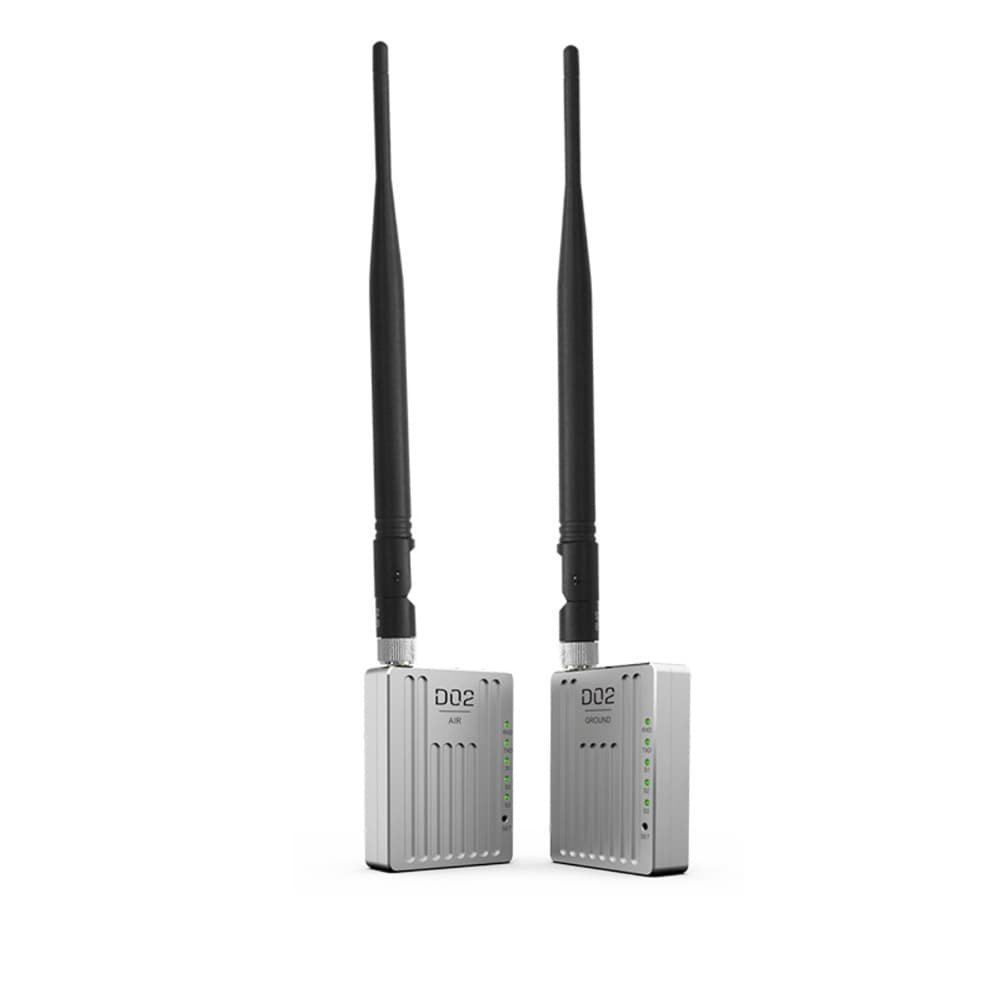

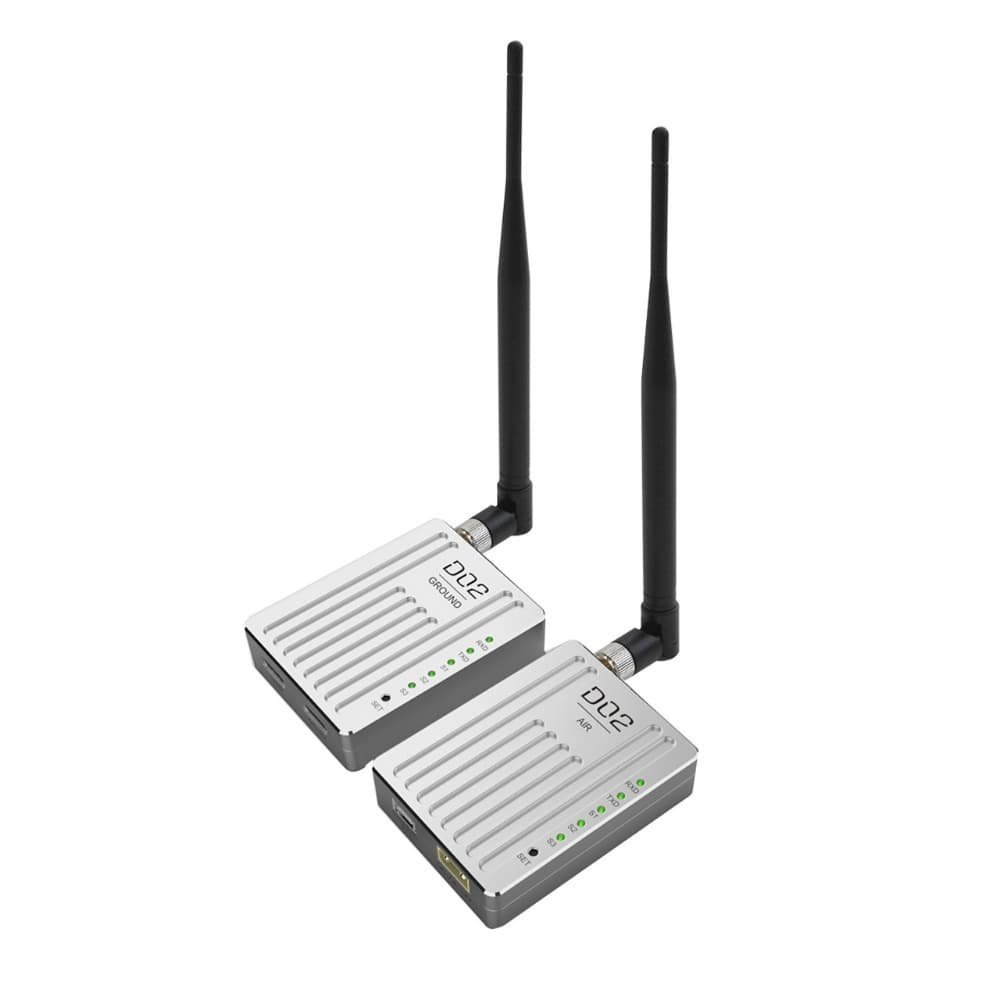

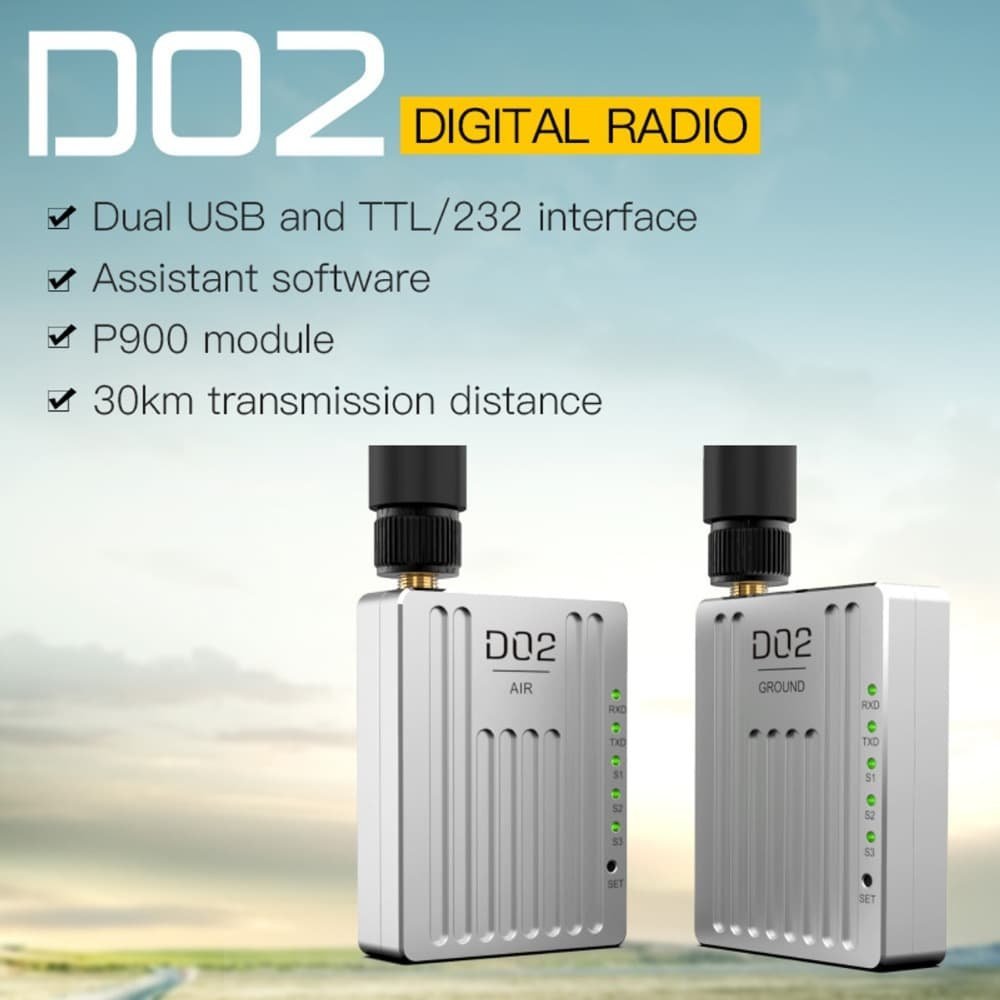

WindRider D02 Telemetry System with 30KM Long-Range Capability for Drones
- Weight: 0.04 KGS
$485
Share on:
Dimension
Packing
| Item | Parameters |
| Frequency | 902-928MHz |
| Modulation | Frequency hopping |
| Forwarding error detection | Hamming/BCH/Golay/Reed-Solomon |
| Error Detection | Error detection 32 bits of CRC, ARQ |
| Encryption | Optional (AES128/256) |
| Output power | 100mW~1w(20-30dBm) |
| Transmission range | 30km grade |
| Serial port | 3.3v CMOS TTL (RS232 optional) |
| Sensitivity | -110dBm @115.2kbps |
| -108dBm @172.8kbps | |
| -107dBm @230.4kbps | |
| Transmission protocol | Transparent transmission |
| Baud rate | 9600bps~230400bps(adjustable) |
| Wireless Link Rate | 276kbps max |
| Power supply voltage | Ground unit: 5.0v; airborne unit: 7.4v~24v |
| Antenna interface | SMA |
| Data interface | GH1.25-4P&USB Type-c |
| Dimension | 62mm(L)*40mm(W)*13mm(H) |
| Weight | 40g (exclude antennas) |
| Operating temperature | -55℃~+85℃ |
