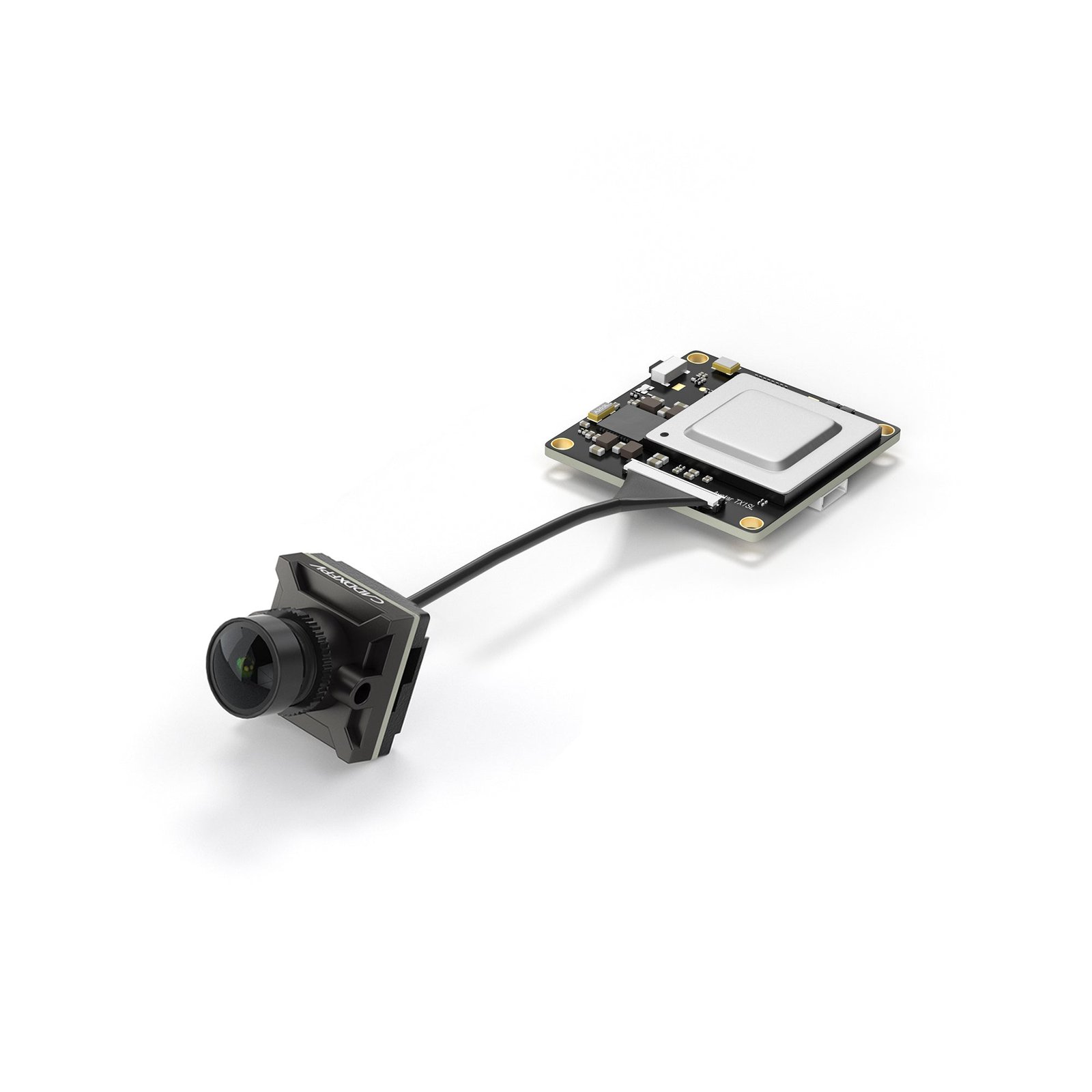

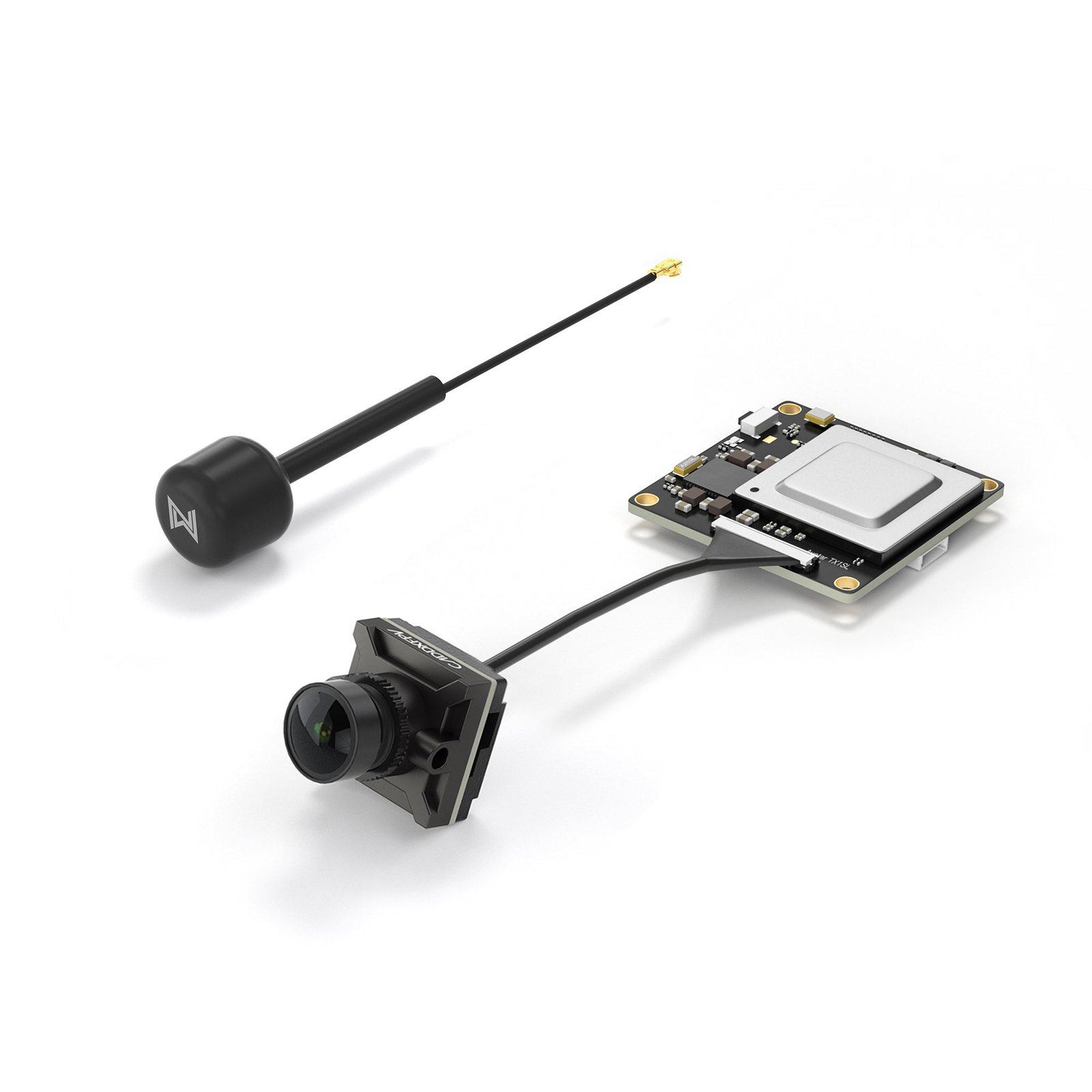

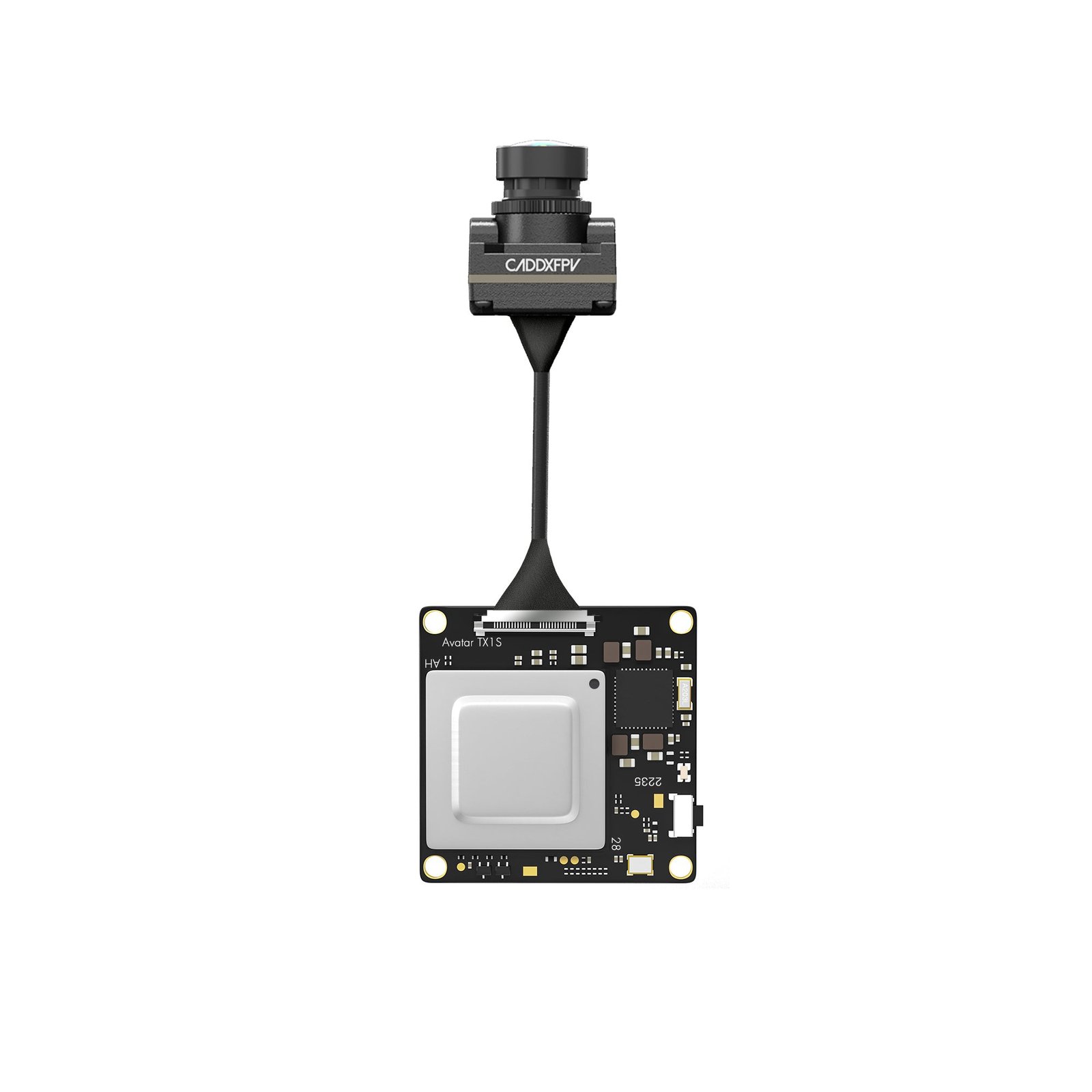

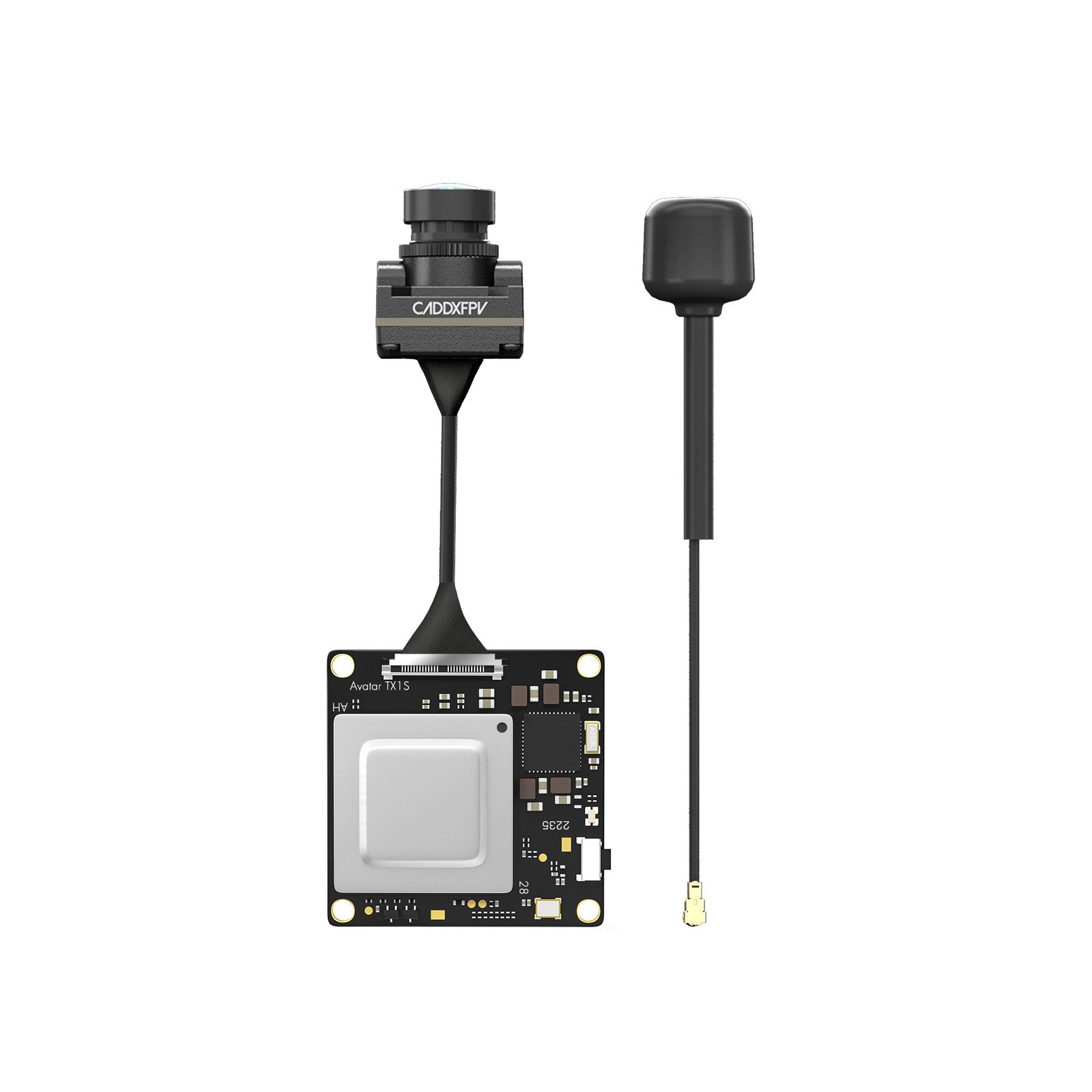

Walksnail Avatar HD Mini 1S Kit – Digital FPV System for FPV Drone Racing, Low-Latency 1080P Camera with Dual Antennas
- Ultra-Light VTX, Perfect for 75X-Class Builds
- Stunning 1080P/60fps or 720P/120fps Video
- Industry-Leading H.265 Encoding for Clarity & Efficiency
- 22ms Ultra-Low Latency for Real-Time Control
- Built-In 8G Storage for Onboard HD Recording
- Flexible Power Input and Strong Output
$129
Share on:
Features:
| 1080P/60fps | 3.1V-13V |
| 22ms low latency | Power 500mW |
| Built-in 8G storage | 6.8g light weight |
1080P/60FPS,720P/120FPS
The Avatar HD system uses H.265 code,an industry-leading technology,to provide 1080p FPV image quality with ultra-low latency.

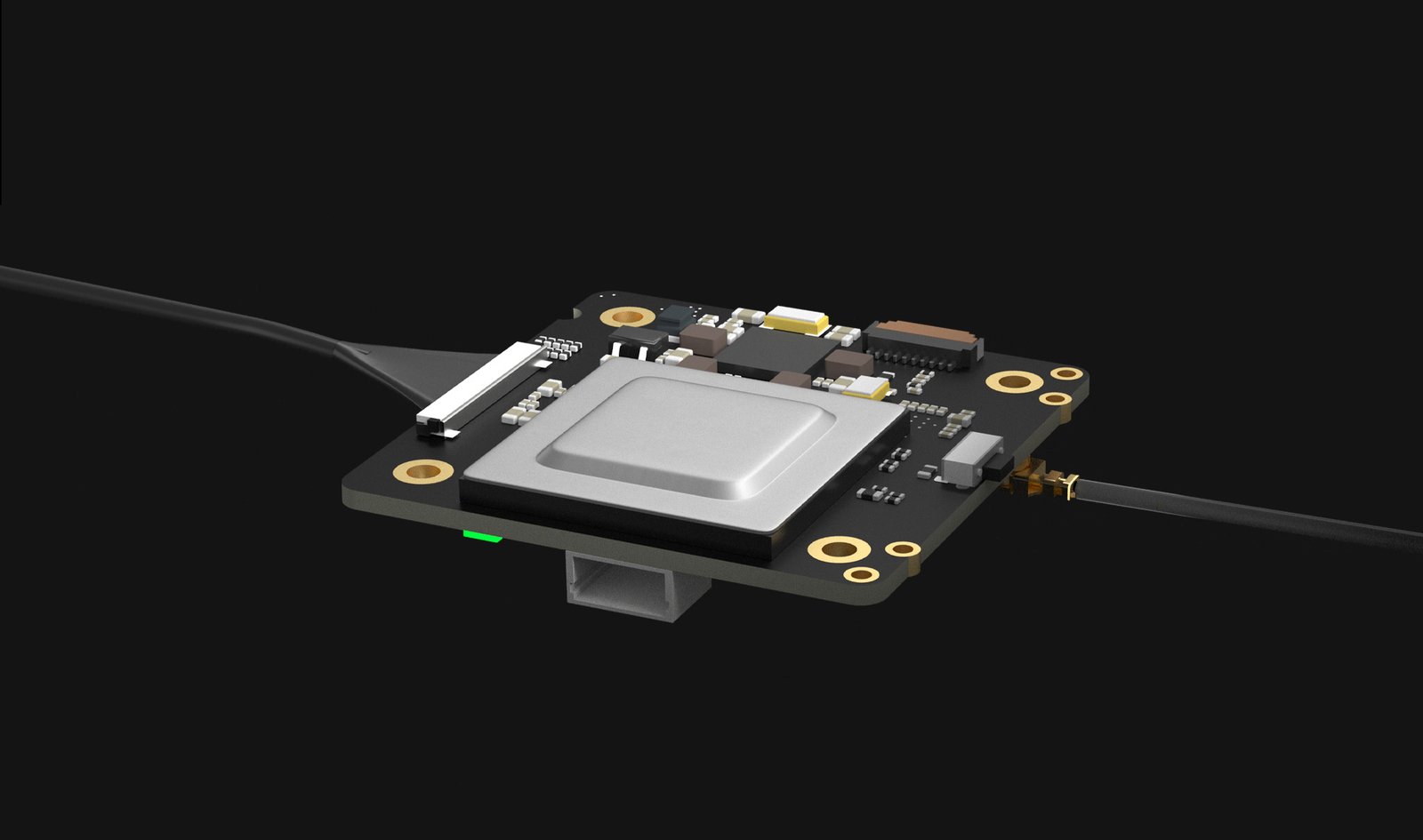

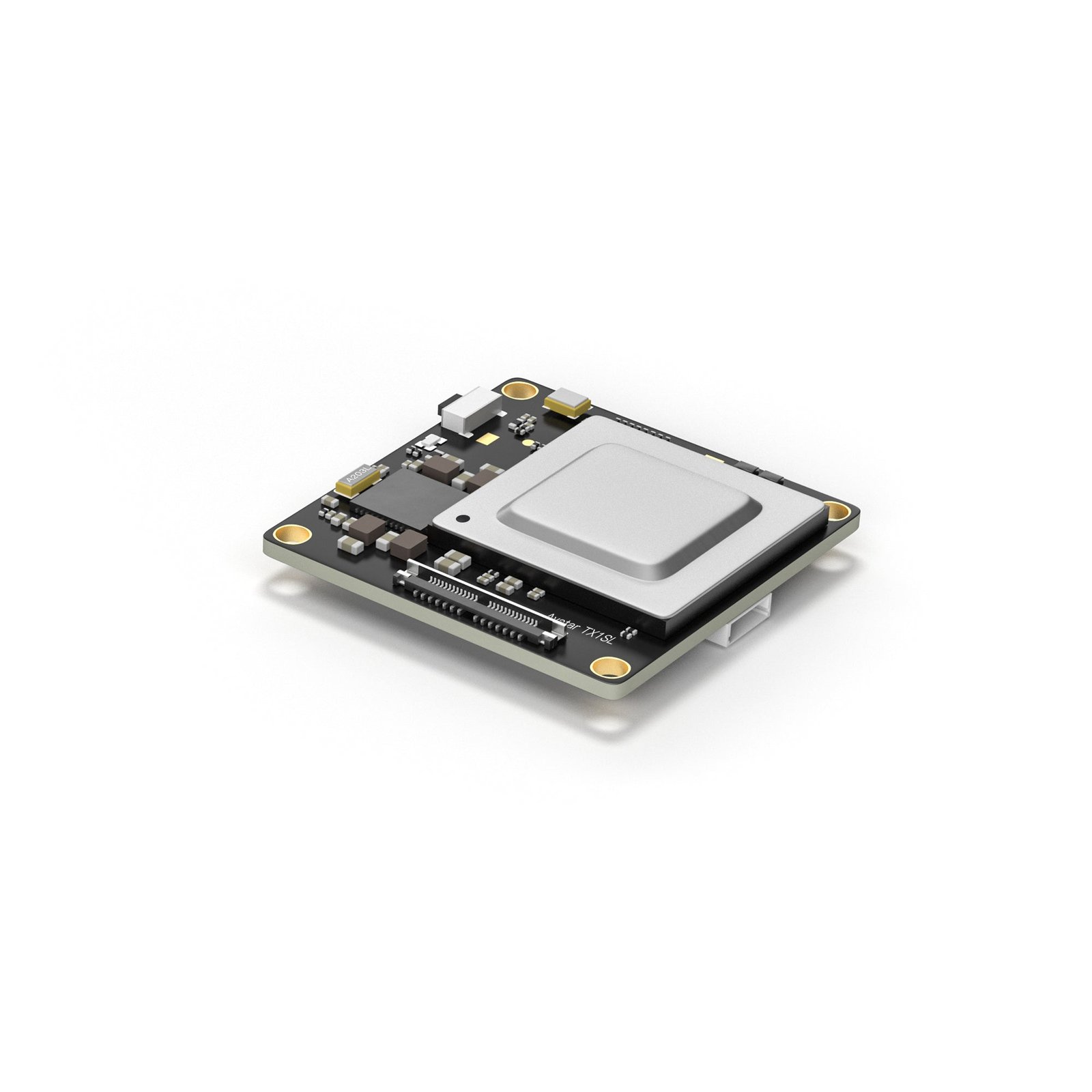

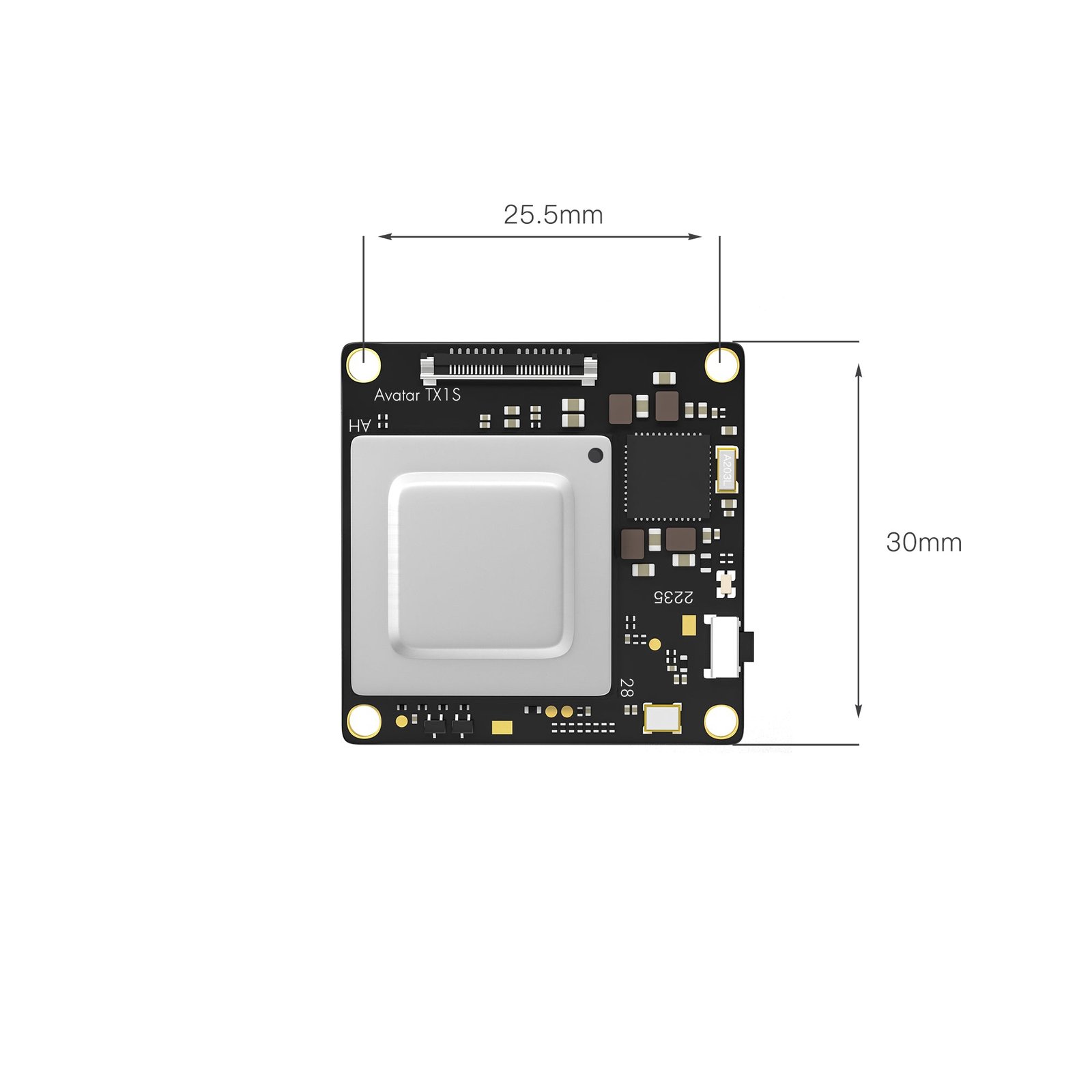

6.8g light weight board

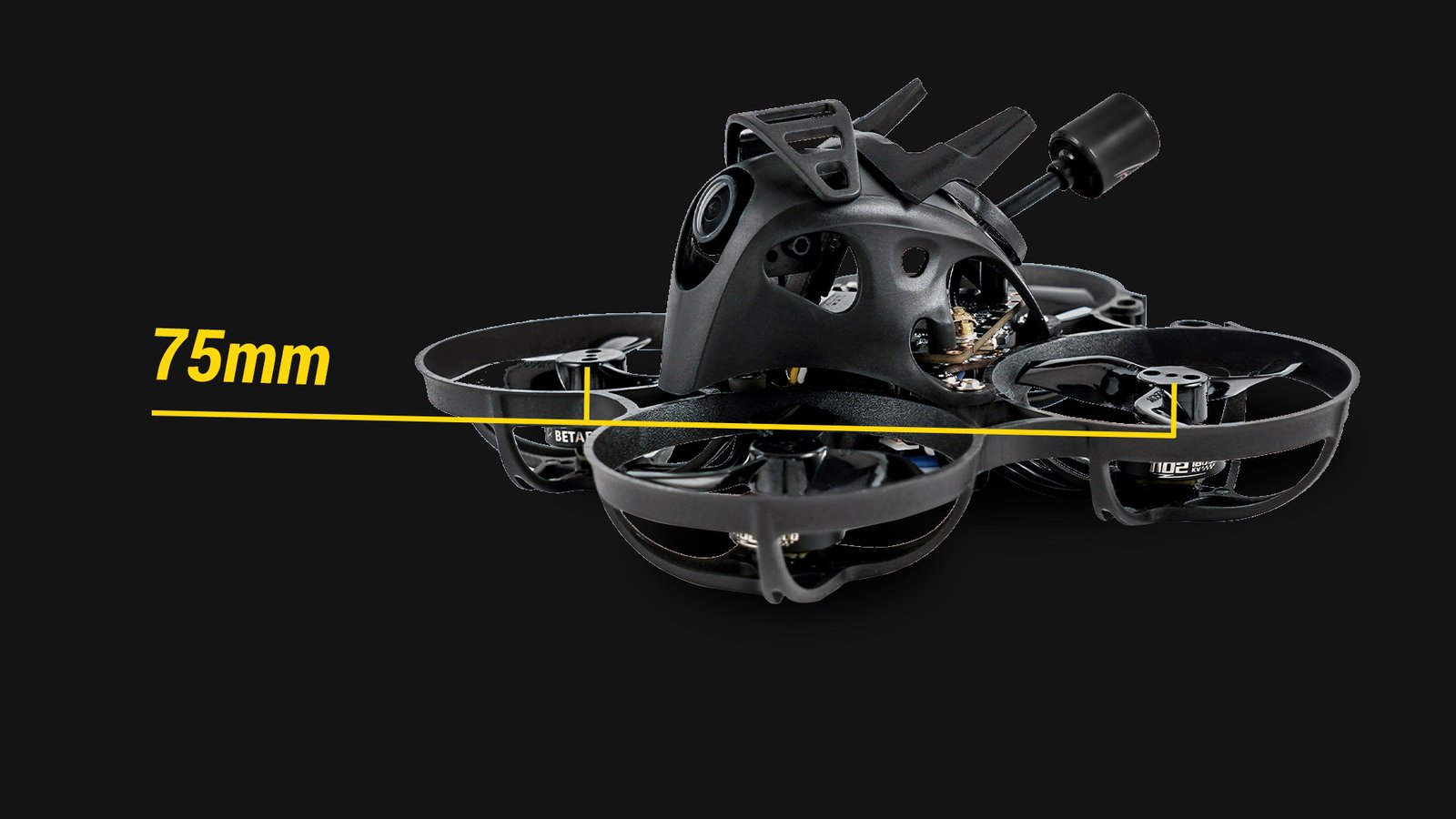

The Avatar mini 1S VTX weights only 6.8g and fits perfectly with the 75X quad.
22ms Low Latency
Supports both high frame rate and standard frame rate,in high frame rate,it has an average latency of 22ms.

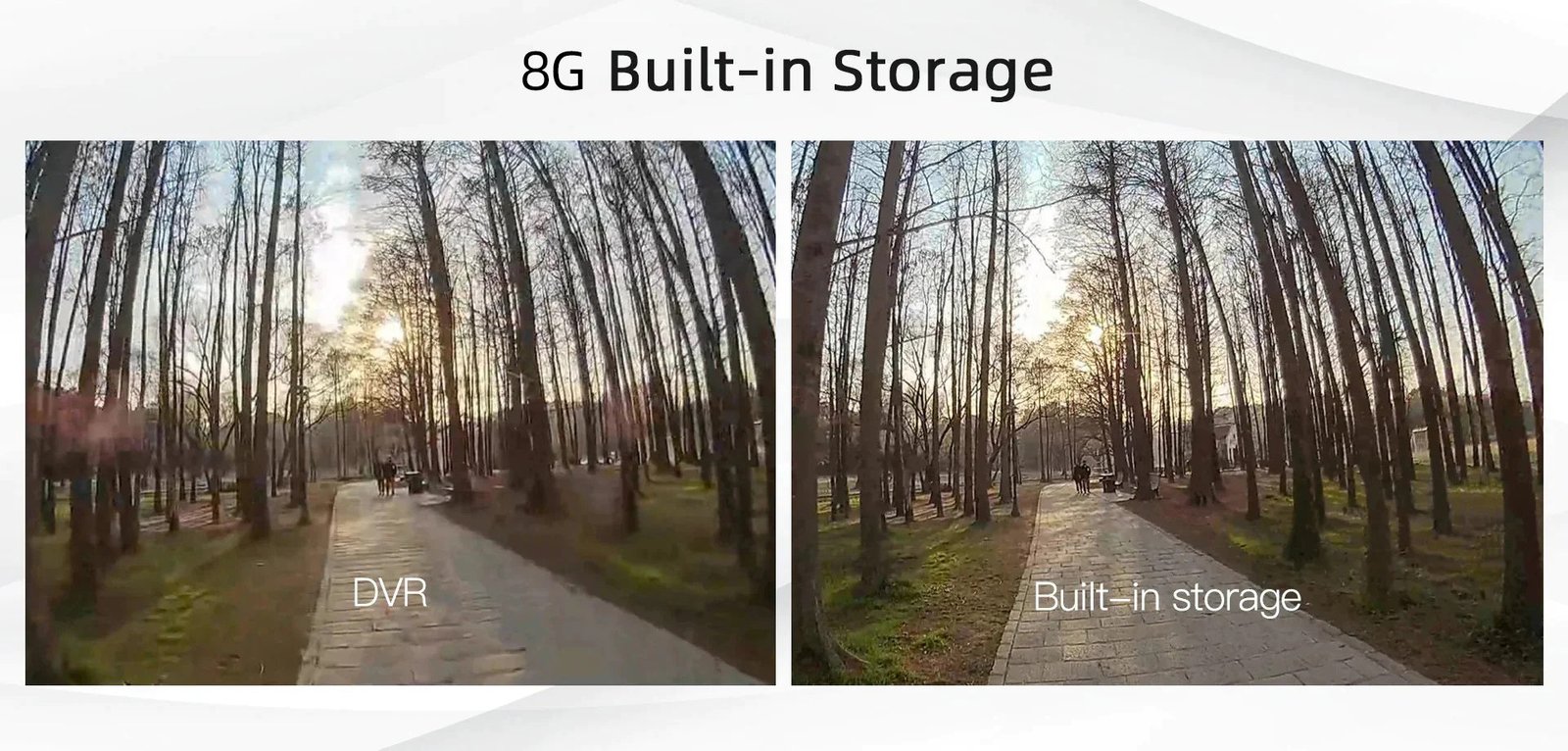

8G Built-in Storage
The Avatar mini 1s vtx comes with 8g built-in storage,it can record 1080pwith 60fps or 720p with 100fps/60fps HD flight videos without interference.
Specification |
|
| Camera | |
| Model | Avatar nano |
| Image Sensor | 1/2.7”1nch |
| Resolution | 1080P/60fps,720P/120fps,720P/60fps |
| Ratio | 16/9 4/3 |
| Lens | 2.1mm |
| FOV | 170° |
| Aperture | F2.0 |
| Shutter Rolling | shutter |
| Min.Illumination | 0.001Lux |
| Weight | 3.5g |
| Dimensions | 14*14*17mm |
| Coaxial Cable | 55mm（default）/90mm |
| VTX | |
| Model | Avatar mini 1s module |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power (EIRP) | FCC:<25.5dBm; CE:<14dBm;SRRC:<20dBm; MIC:<25dBm |

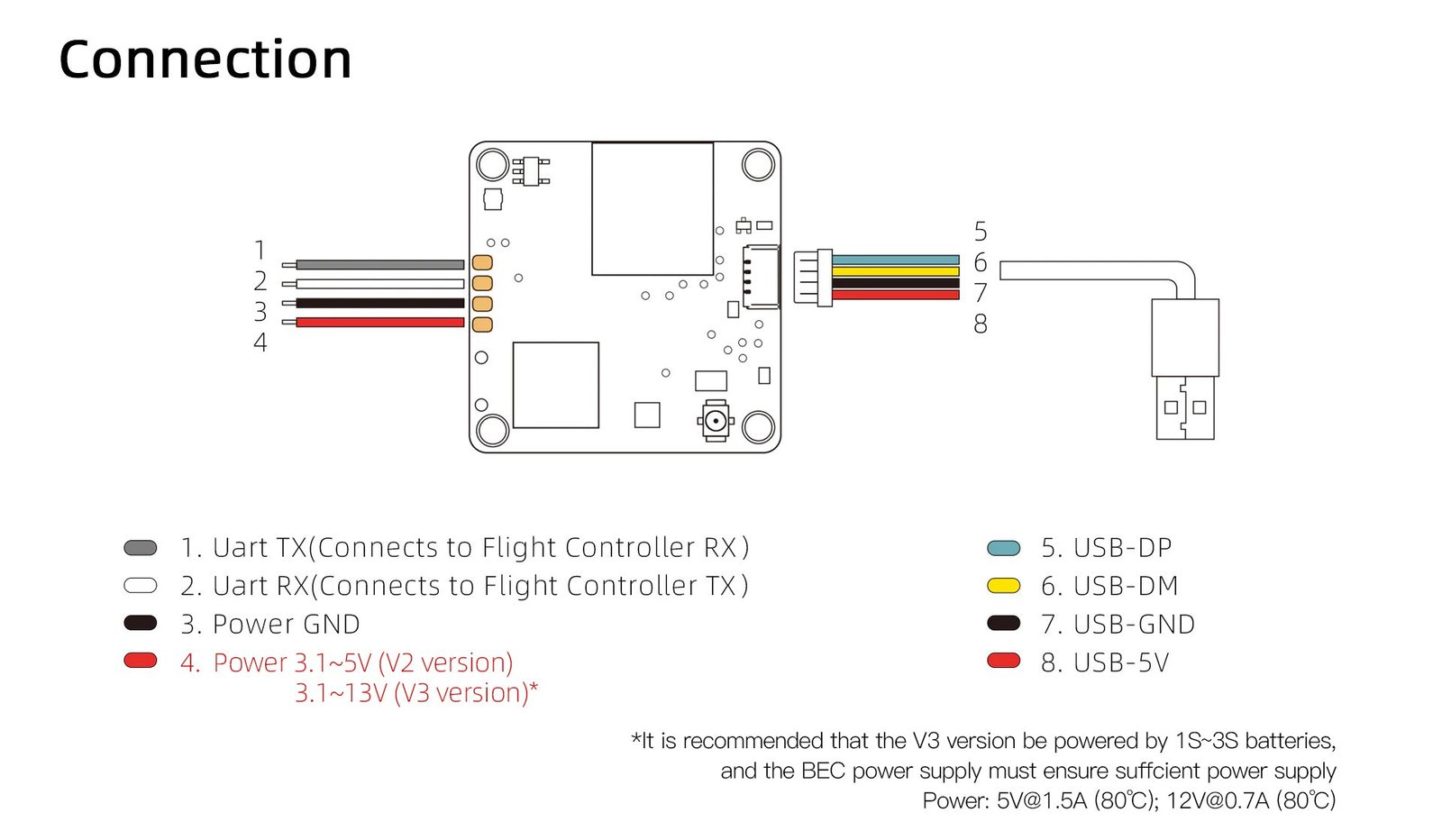

| I/O Interface | JST1.0*6(Power in)JST0.8*4(USB) |
| Mounting Holes | 25.5*25.5mm |
| Dimensions | 30*30*6.5mm |
| Storage | 8G |
| Recording | 1080p/720p |
| Weight | 6.8g |
| Operating Temperature | -20-40℃ |
| Channels | 8 |
| Wide Power Input | 3.1V-5V(V2) / 3.1V-13V(V3) |
| Supported FC System | Betaflight; Inav; Fettec; Kiss; ArduPliot |
| OSD | Canvas mode |
| Bitrate | 25mbps 50mbps |
| Latency | Average latency 22ms |
| Antenna | IPEX |
| VTX Antenna | |
| Model | Avatar V2 antenna |
| Polarization | LHCP |
| Bandwidth | 5600MHz-6000MHz |
| Average Gain | 1.9dBi |
| VSWR | ＜1.5 |
| Line Length | 90mm |
| Input Impedance | 50Ω |
| Interface | IPEX-1 |
| Dimension | D15mm*L105mm |
| Weight | 2g |
